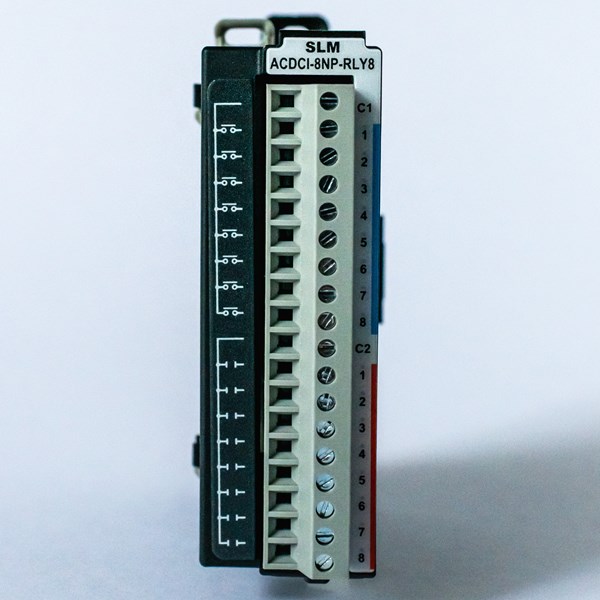

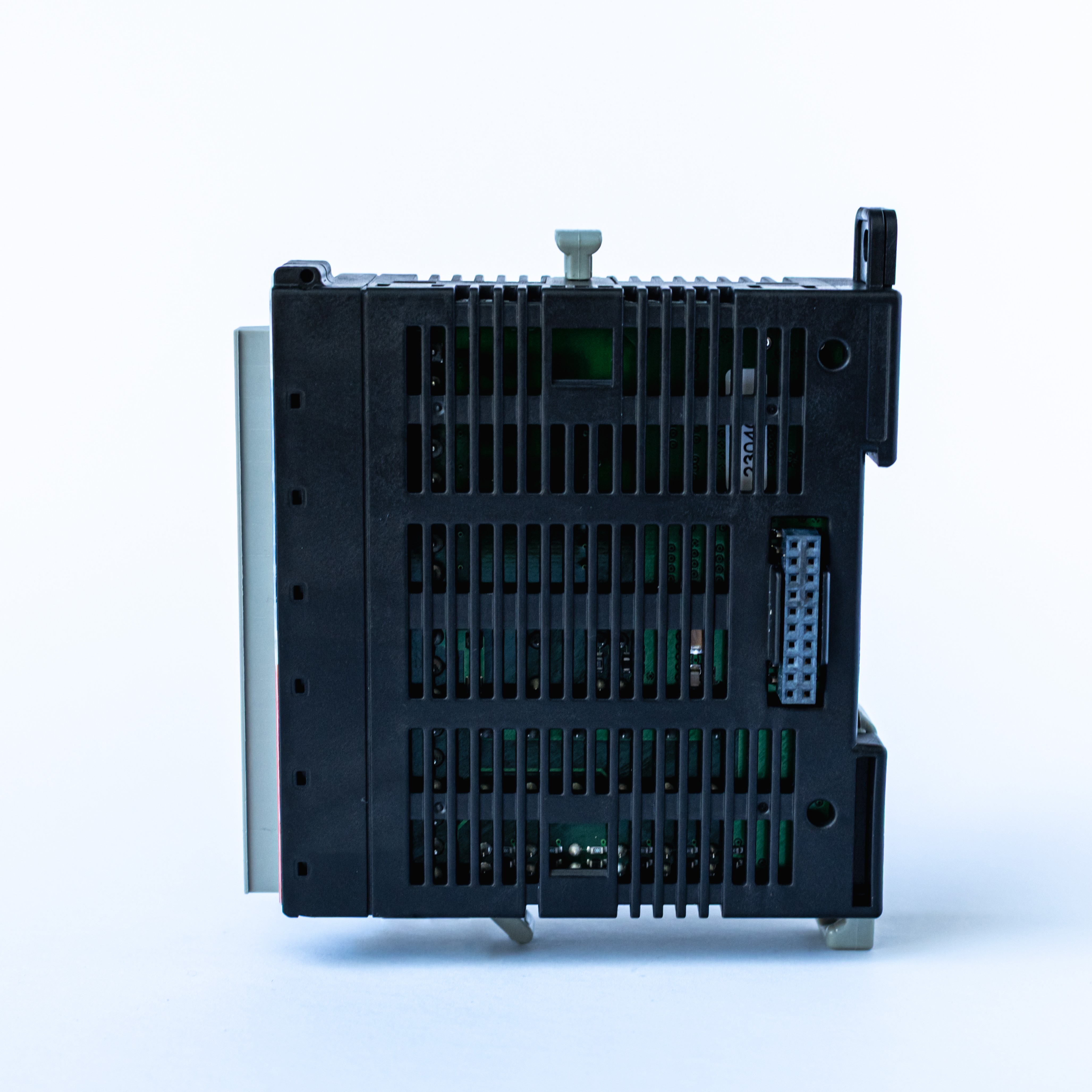

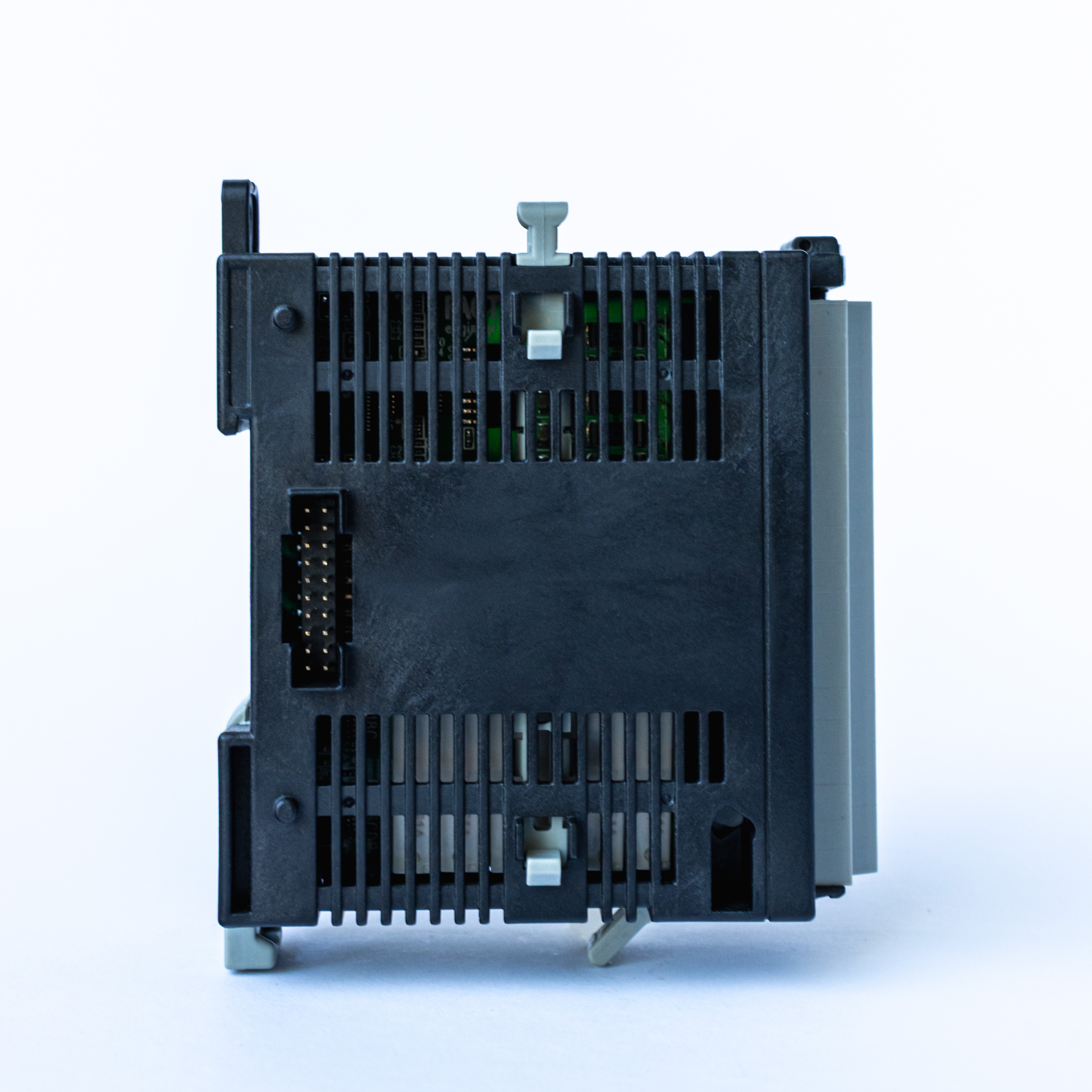

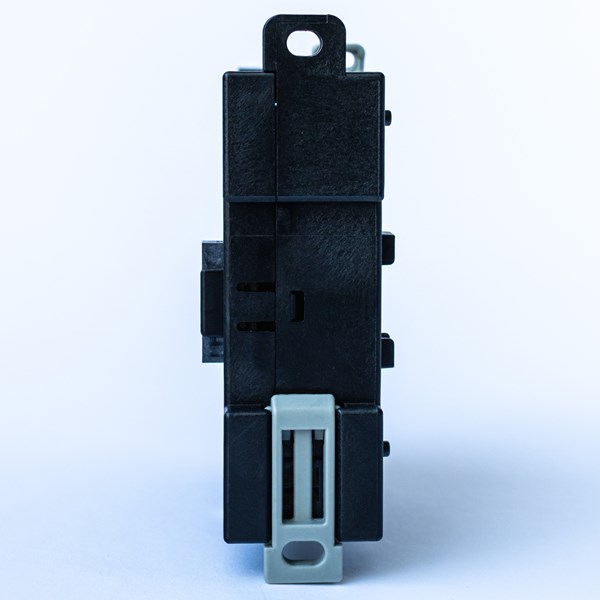

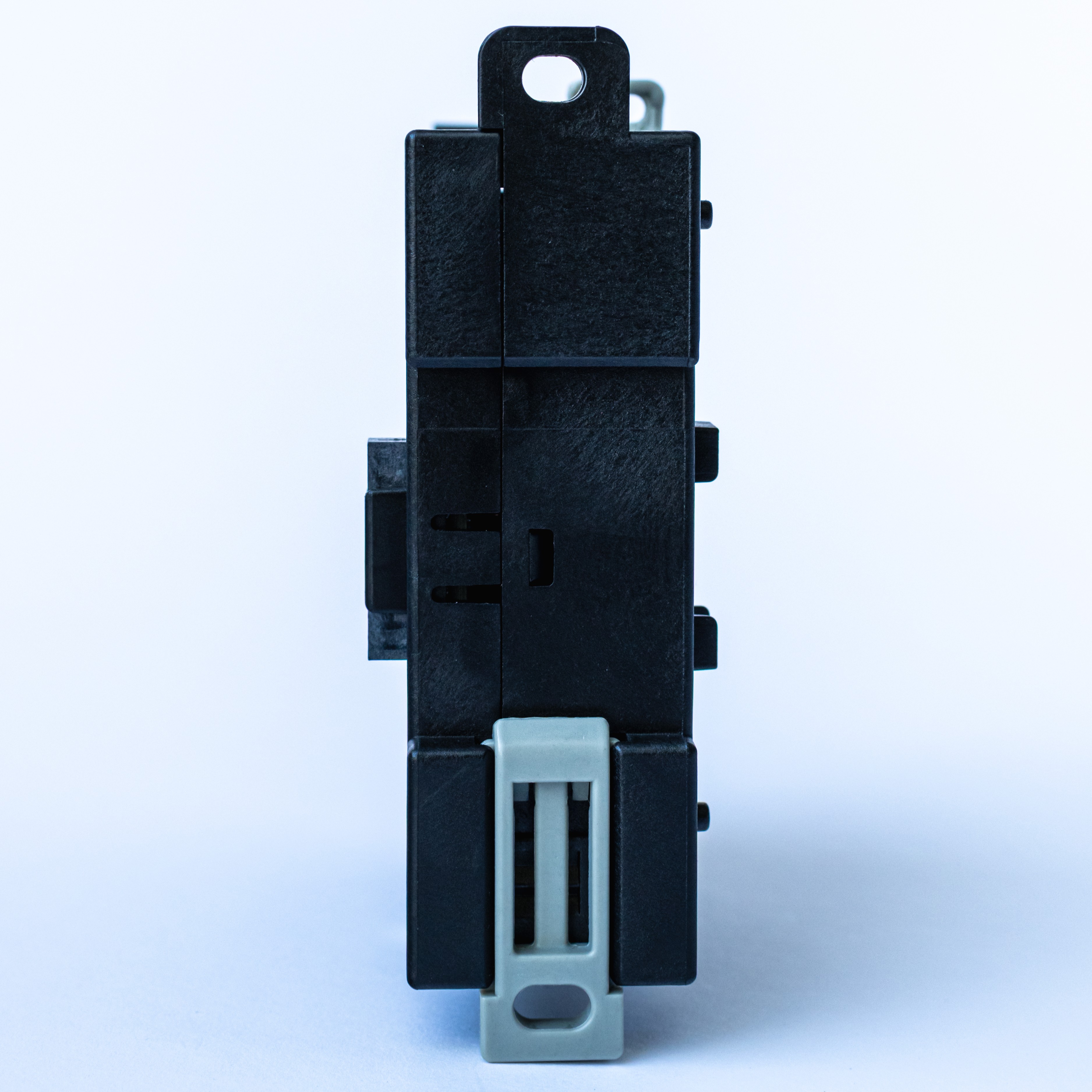

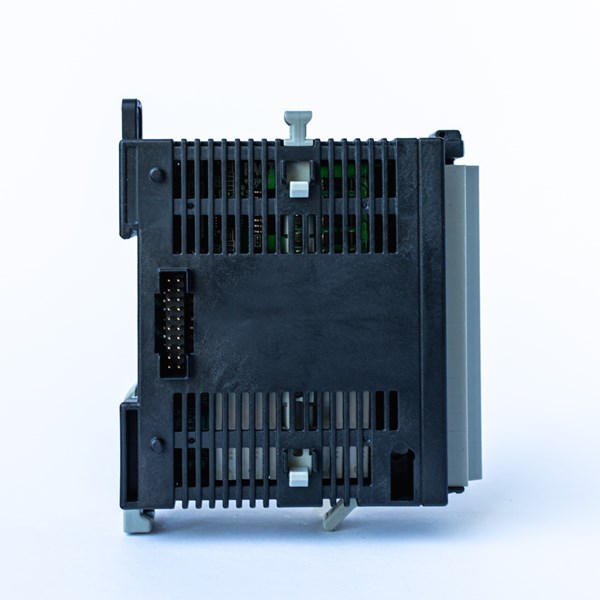

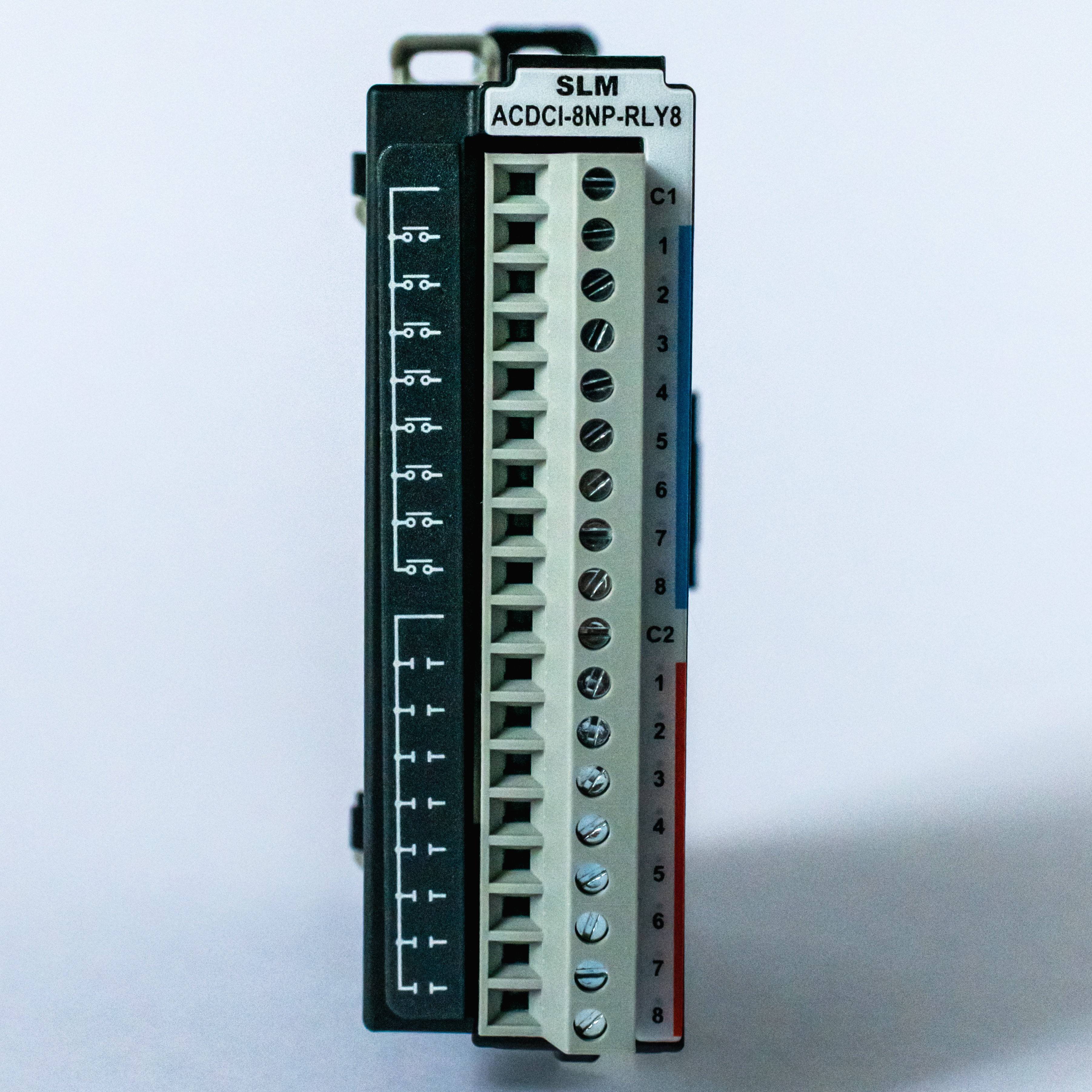

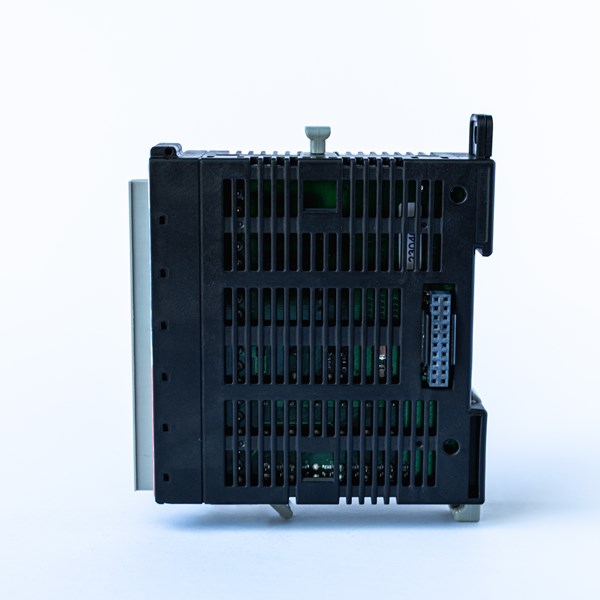

SLM-ACDCI-8NP-RLY8
discrete combo module, Input: 8-point, 24 VAC/VDC, sinking/sourcing, Output: 8-point, 6-24 VDC/6-120 VAC, relay, (8) Form A (SPST) relays, 1A/point
- Availability:
- In Stock
Net price: $110.00
Technical Details
- Family:
- Synergy-Logic Micro
- Online Documentation:
- https://docs.synergy-logic.com/
- Module Type:
- Relay Combo
- Channels:
- 8 inputs (24 VAC/VDC), 8 relay outputs (6–240 VAC)
- Signal Range:
- 24 VAC/VDC / 6–240 VAC
- Current:
- Inputs: 4.5 mA @24 VDC; Outputs: 1 A/point
- Number of Commons:
- 2
- Input Range:
- 24 VDC
- Output Range:
- 6–240 VAC
- Input Channels:
- 8 inputs
- Output Channels:
- 8 relay outputs
- Agency Approvals:
- UL 61010-1 and UL61010-2-201 File E547748, Canada & USA CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 Safety)
Resources
User Guide
SLM-ACDCI-8NP-RLY8-DS_1stEdition_10202025_LR
Warranty
- Warranty Information:
- Two years from the date of manufacture or eighteen months from the date of installation by the original purchaser
