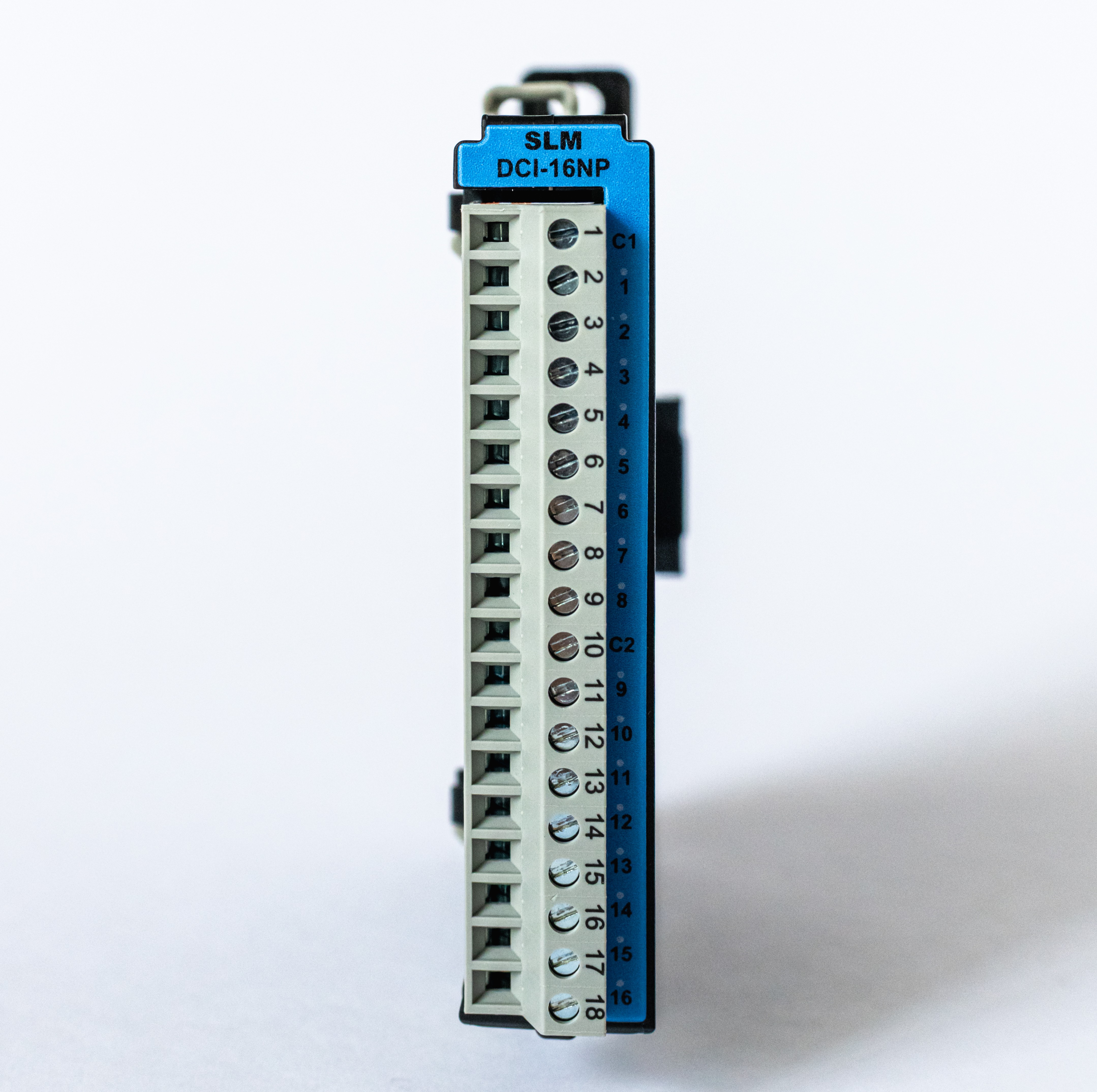

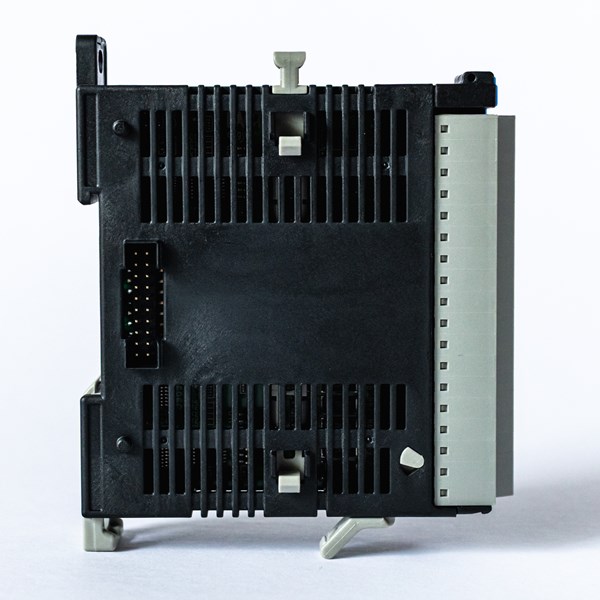

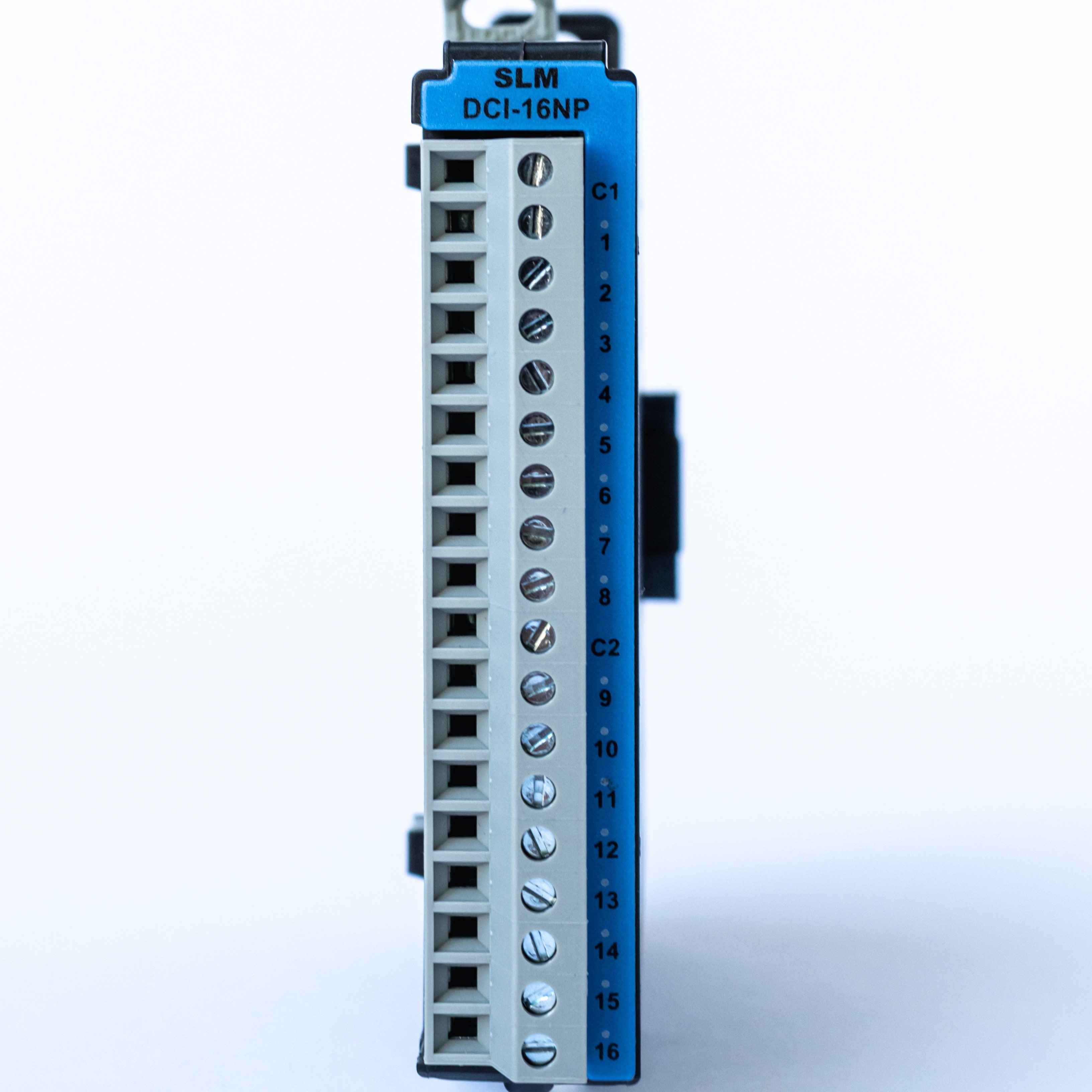

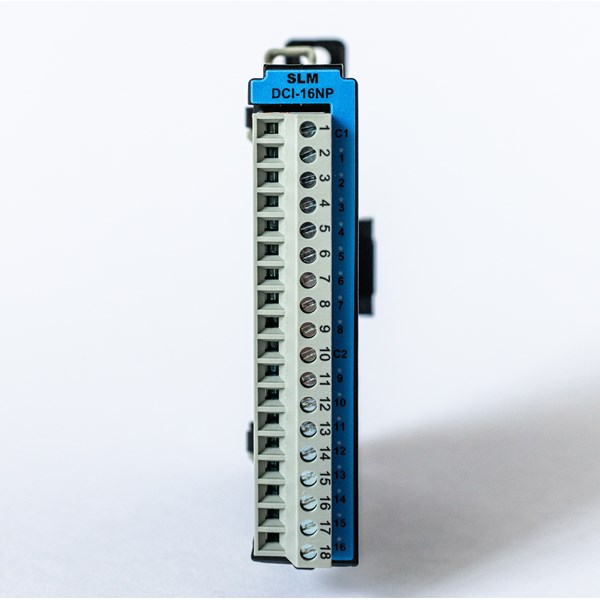

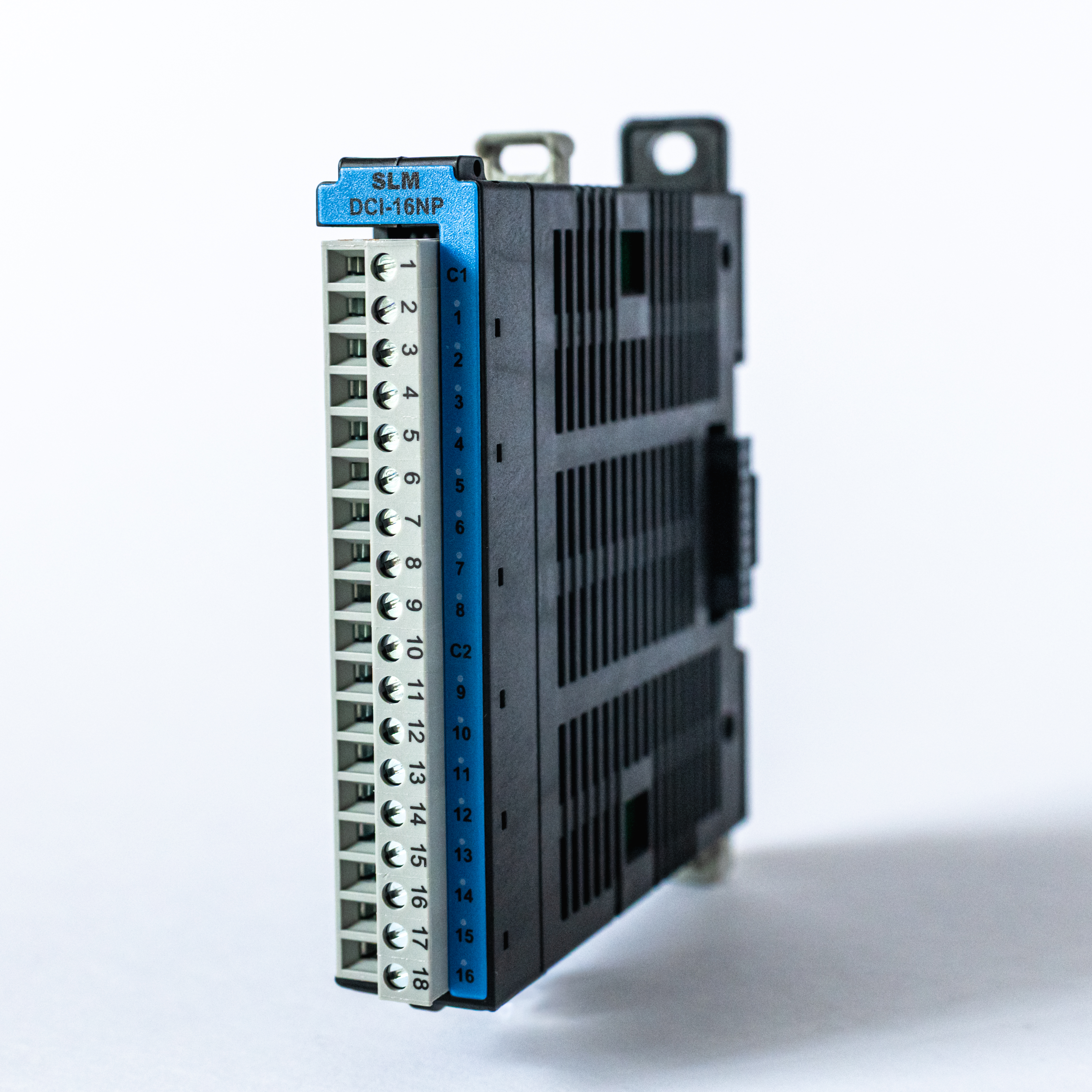

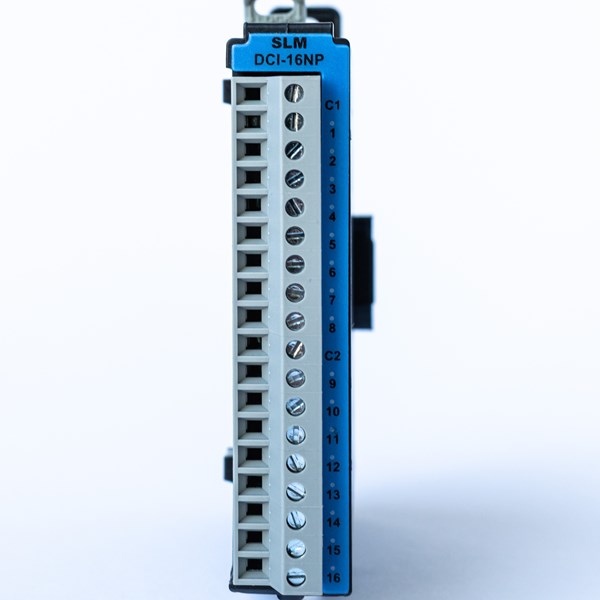

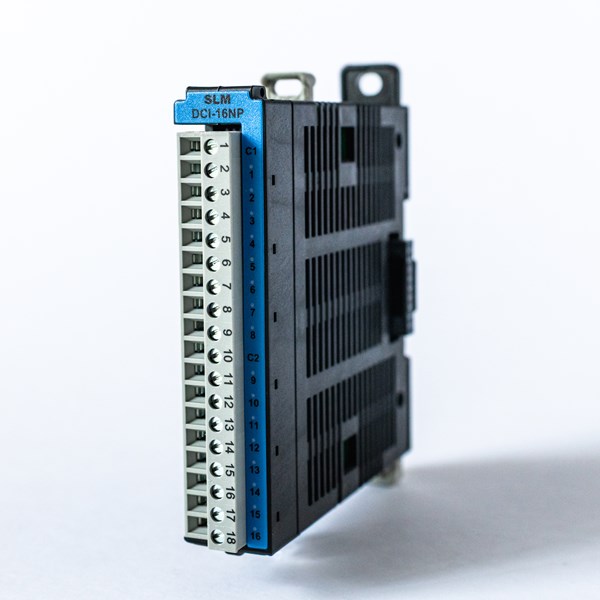

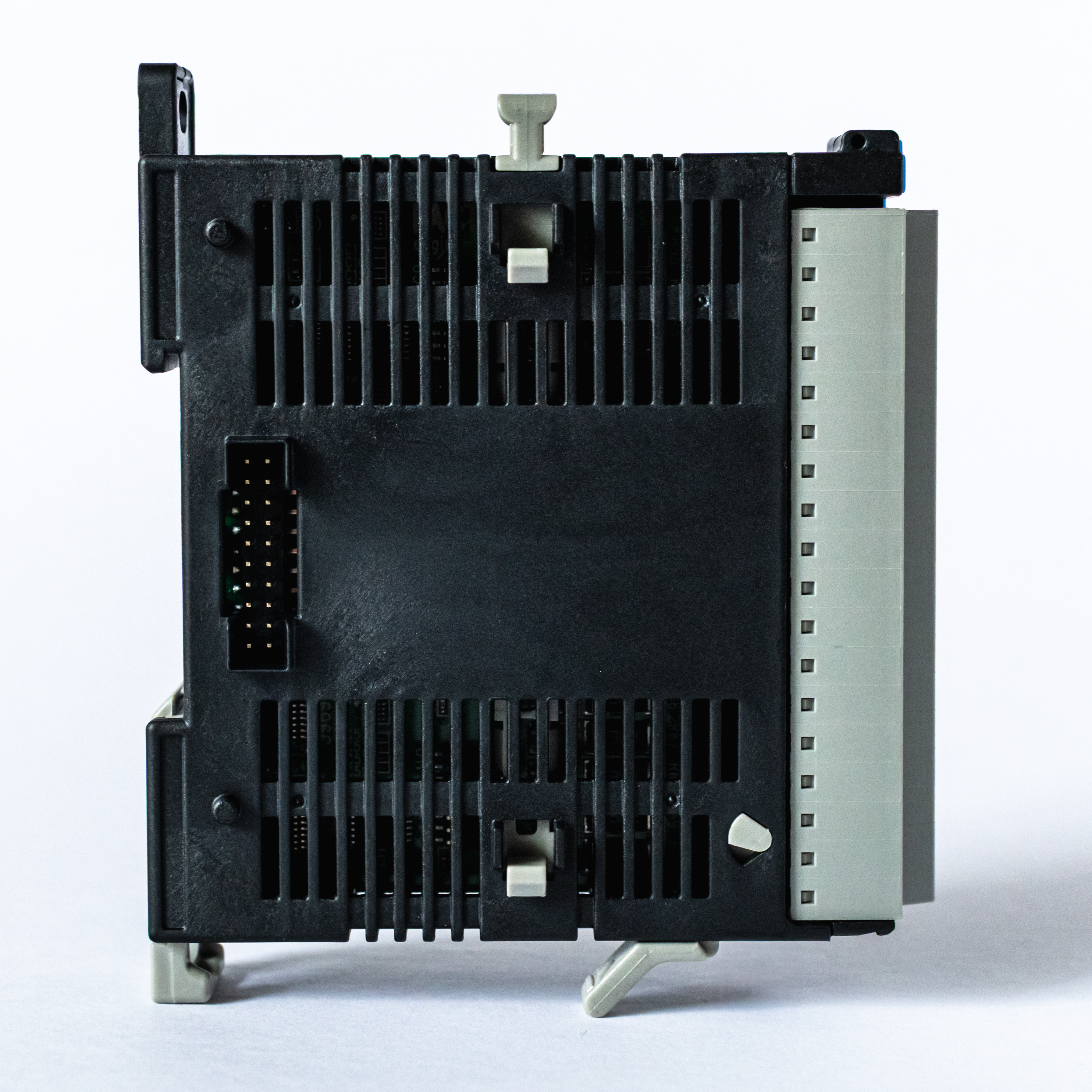

SLM-DCI-16NP
16-point, 12-24 VDC, sinking/sourcing, 2 isolated common(s), 8 point(s) per common
- Availability:
- In Stock
Net price: $92.40
Technical Details
- Family:
- Synergy-Logic Micro
- Online Documentation:
- https://docs.synergy-logic.com/
- Module Type:
- Discrete Input
- Channels:
- 16 sinking/sourcing inputs (12–24 VDC)
- Signal Range:
- 12–24 VDC (sink/source)
- Current:
- 3.5 mA @12 VDC, 8.4 mA @24 VDC
- Number of Commons:
- 2
- Input Range:
- 12–24 VDC
- Input Channels:
- 16 inputs
- Agency Approvals:
- UL 61010-1 and UL61010-2-201 File E547748, Canada & USA CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 Safety)
- Operating Temperature:
- 0° to 60°C (32° to 140°F)
- Storage Temperature:
- –20–70 °C
Resources
User Guide
SLM-DCI-16NP-DS_1stEdition_10202025_LR
Warranty
- Warranty Information:
- Two years from the date of manufacture or eighteen months from the date of installation by the original purchaser
