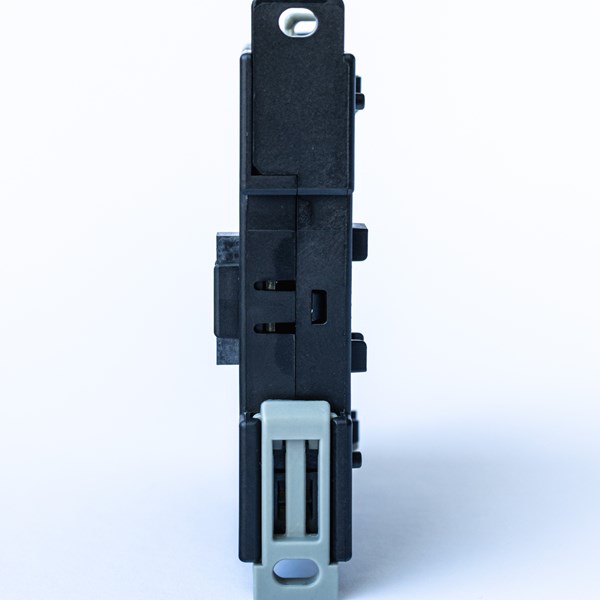

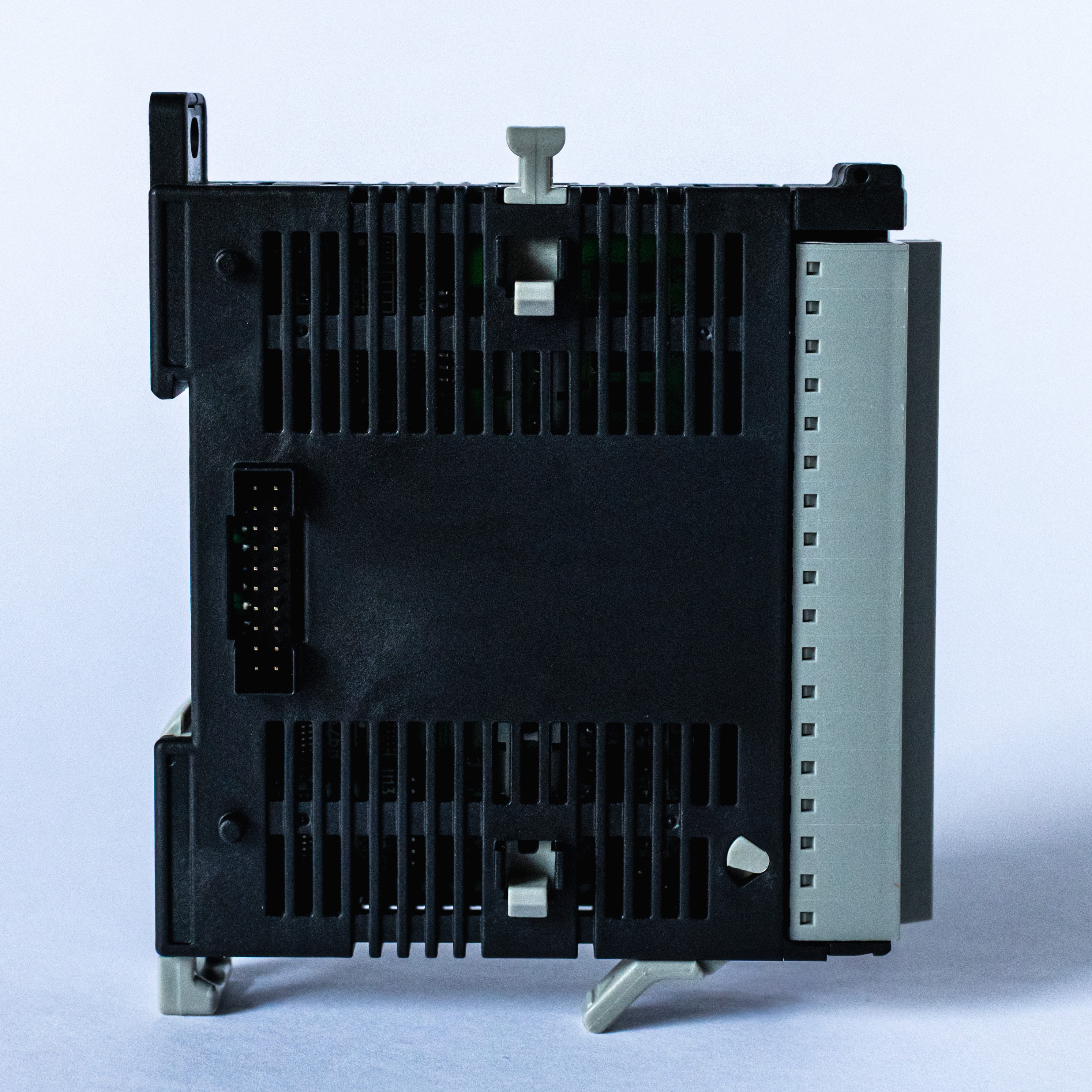

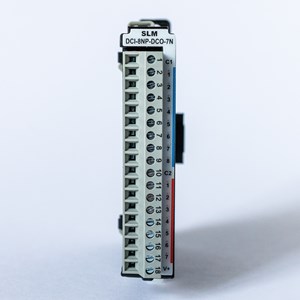

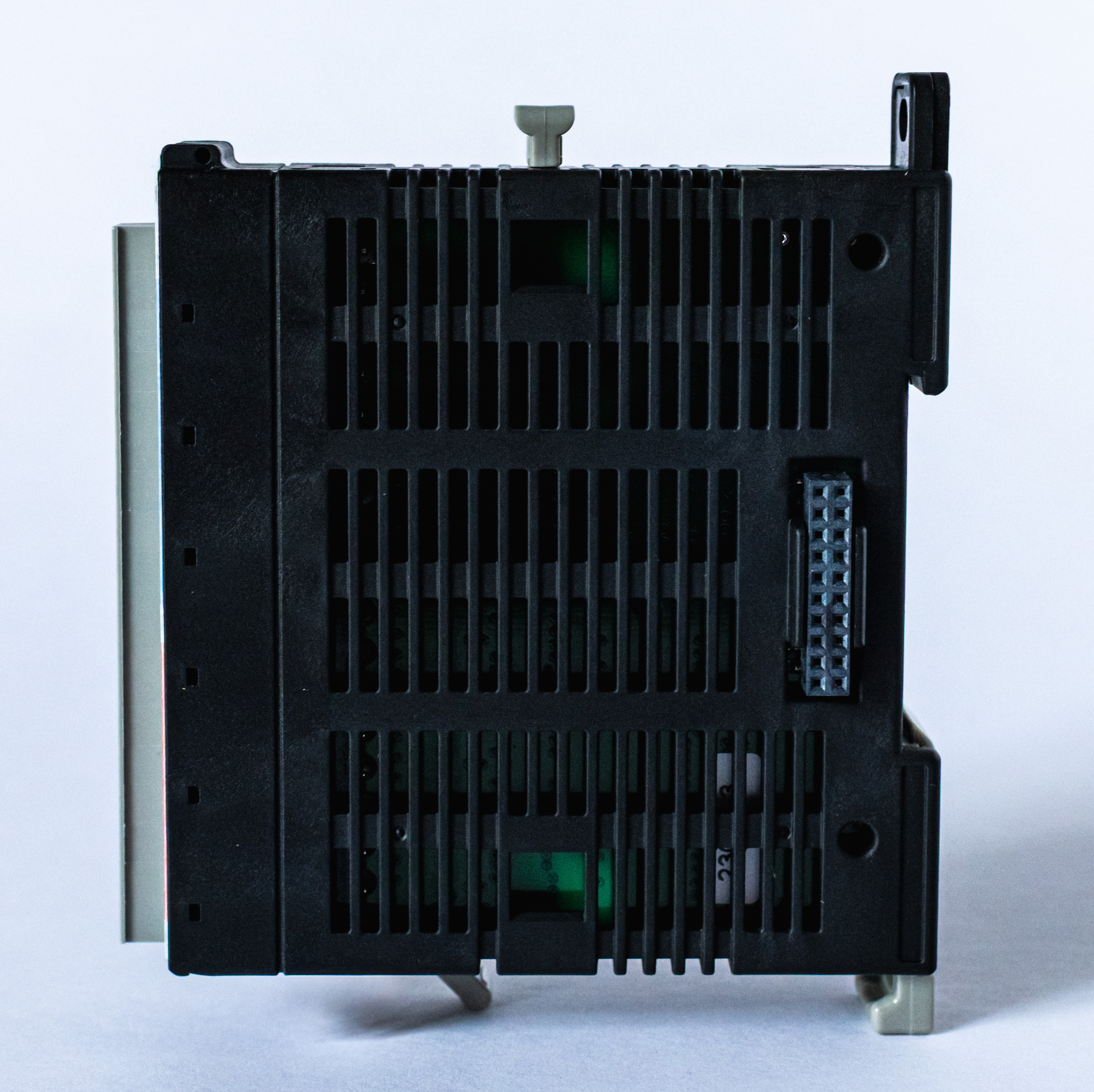

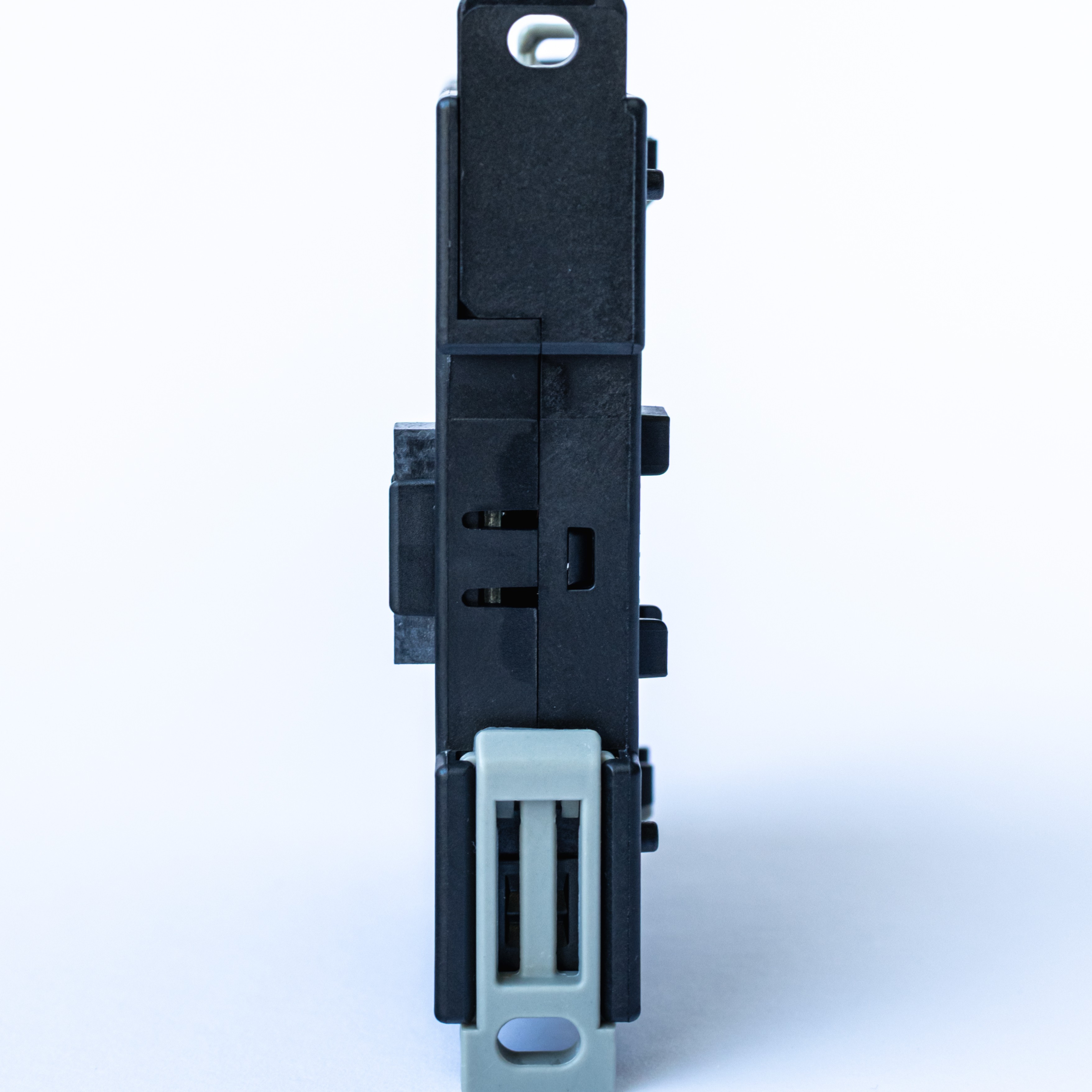

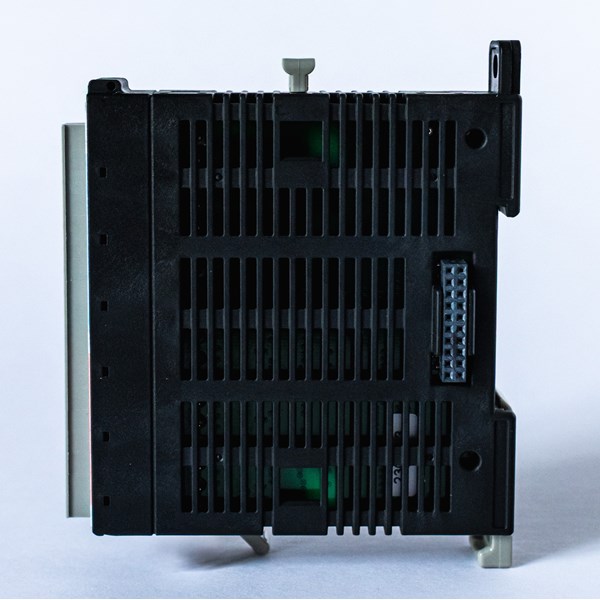

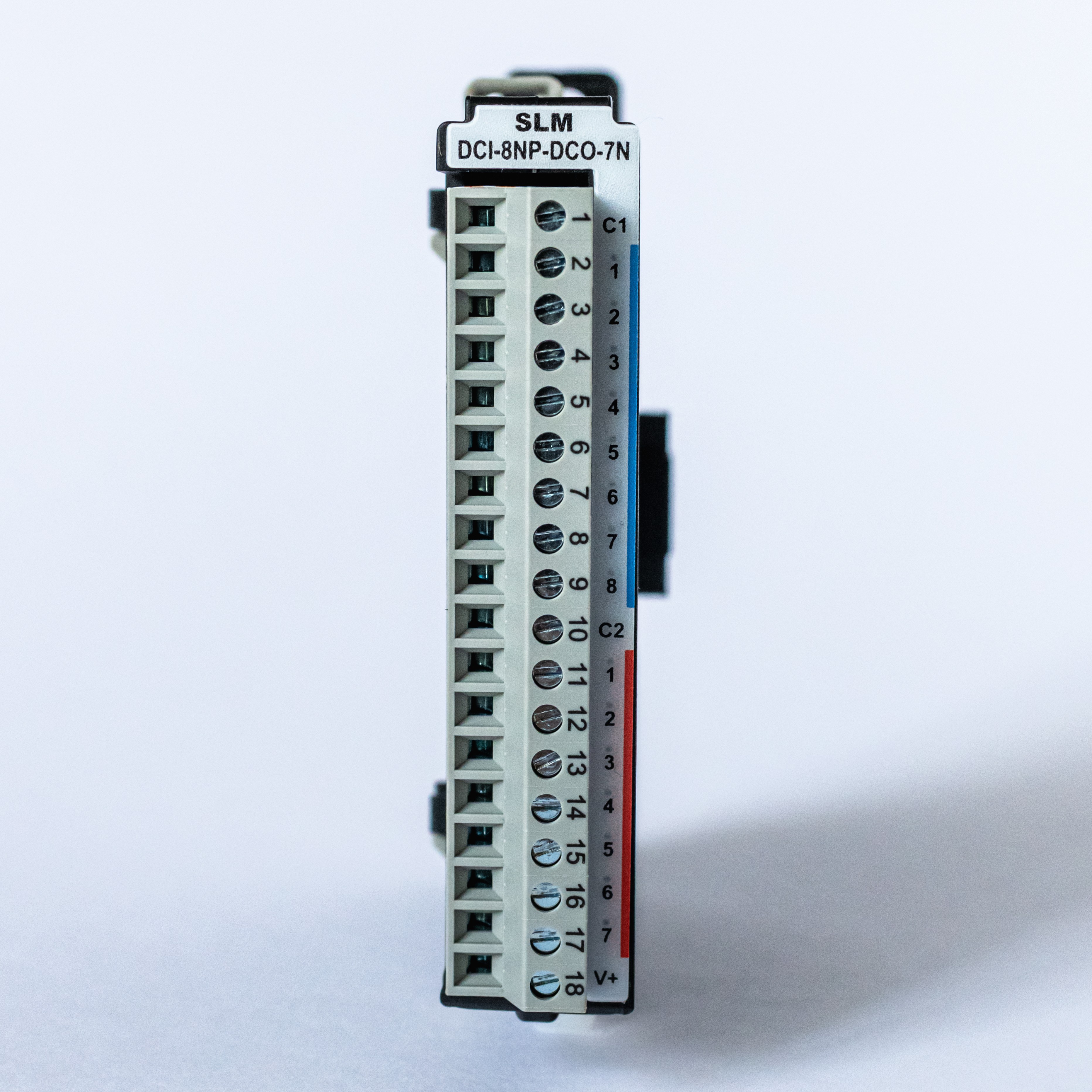

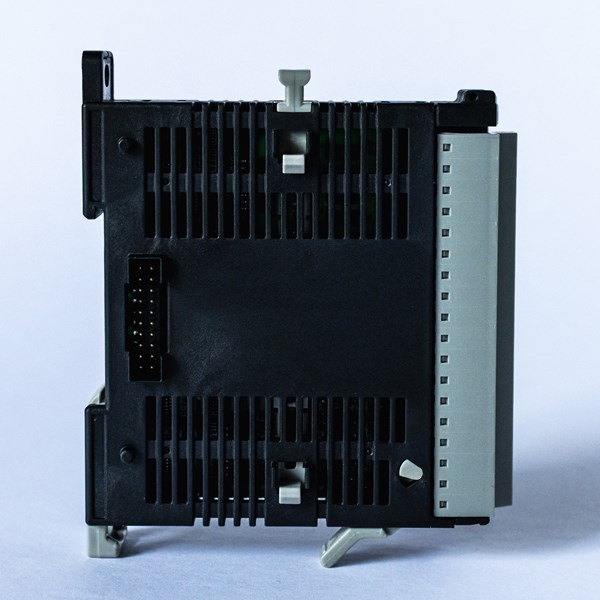

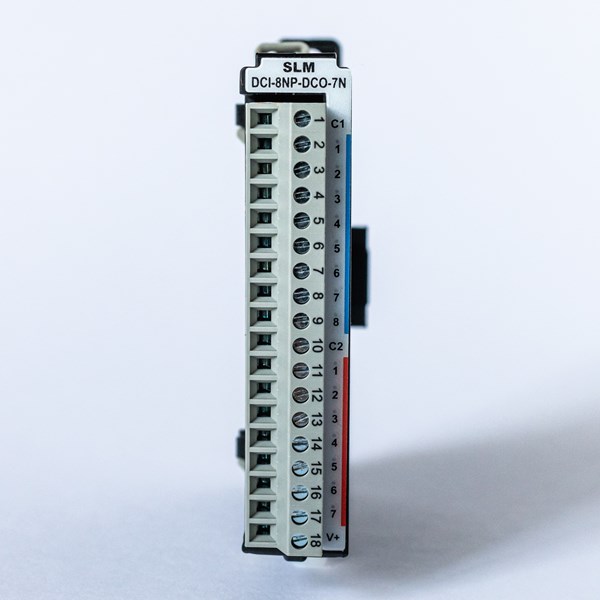

SLM-DCI-8NP-DCO-7N
discrete combo module, Input: 8-point, 12-24 VDC, sinking/sourcing, Output: 7-point, 3.3-24 VDC, sinking, 1A/point
- Availability:
- In Stock
Net price: $85.00
Technical Details
- Family:
- Synergy-Logic Micro
- Online Documentation:
- https://docs.synergy-logic.com/
- Module Type:
- Discrete Combo
- Channels:
- 8 inputs (12–24 VDC), 7 sinking outputs (3.3–24 VDC)
- Signal Range:
- 12–24 VDC / 3.3–24 VDC
- Current:
- Inputs: 3.5 mA @12 VDC; Outputs: 0.5 A/point
- Number of Commons:
- 2
- Input Range:
- 12–24 VDC
- Output Range:
- 3.3–24 VDC
- Input Channels:
- 8 inputs
- Output Channels:
- 7 sinking outputs
- Agency Approvals:
- UL 61010-1 and UL61010-2-201 File E547748, Canada & USA CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 Safety)
Resources
User Guide
SLM-DCI-8NP-DCO-7N-DS_1stEdition_10232025_LR
Warranty
- Warranty Information:
- Two years from the date of manufacture or eighteen months from the date of installation by the original purchaser
