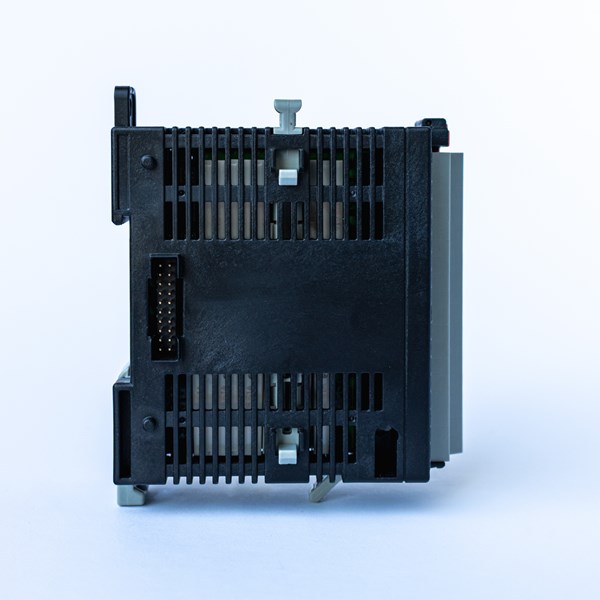

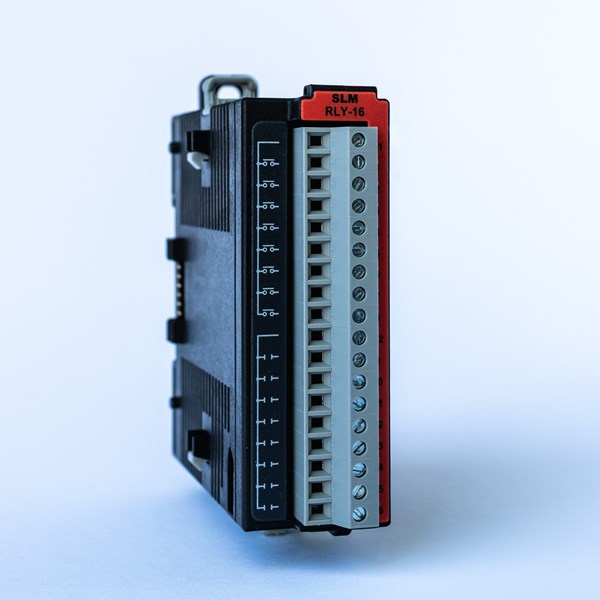

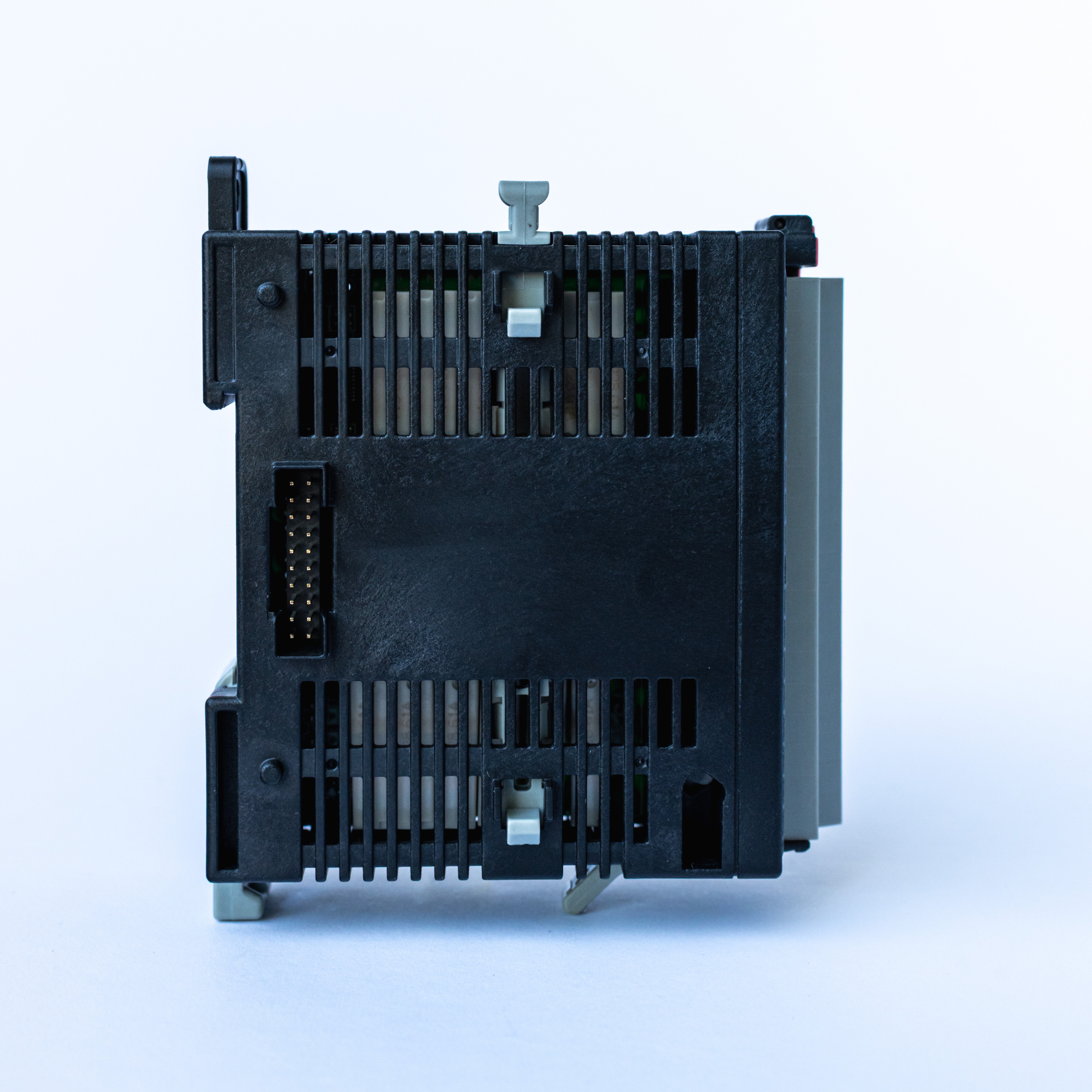

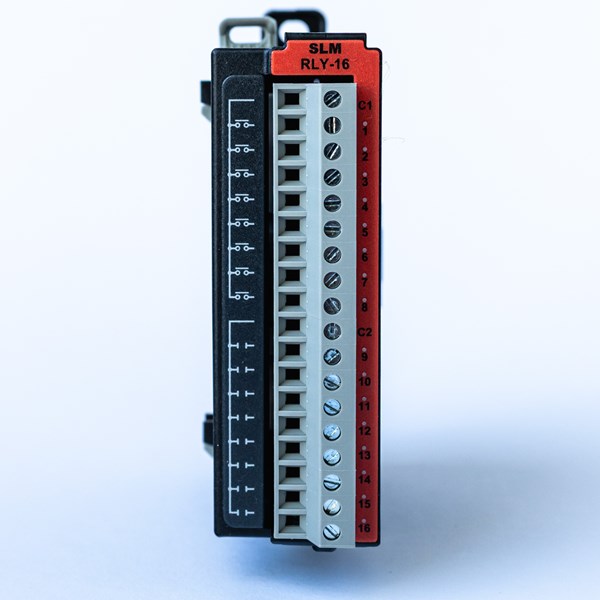

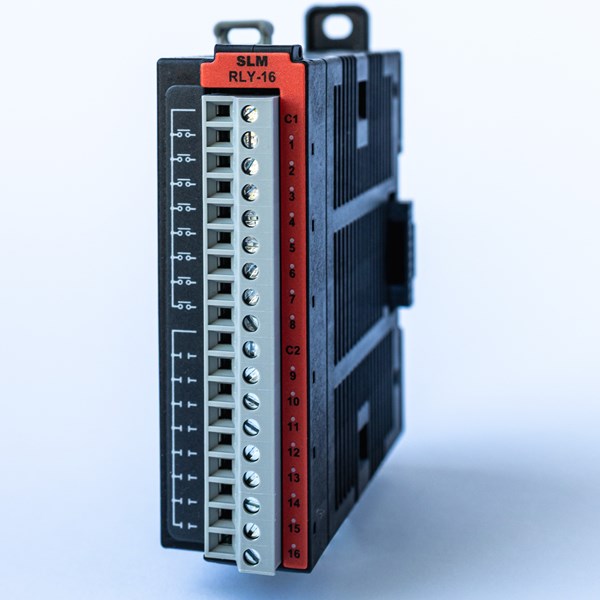

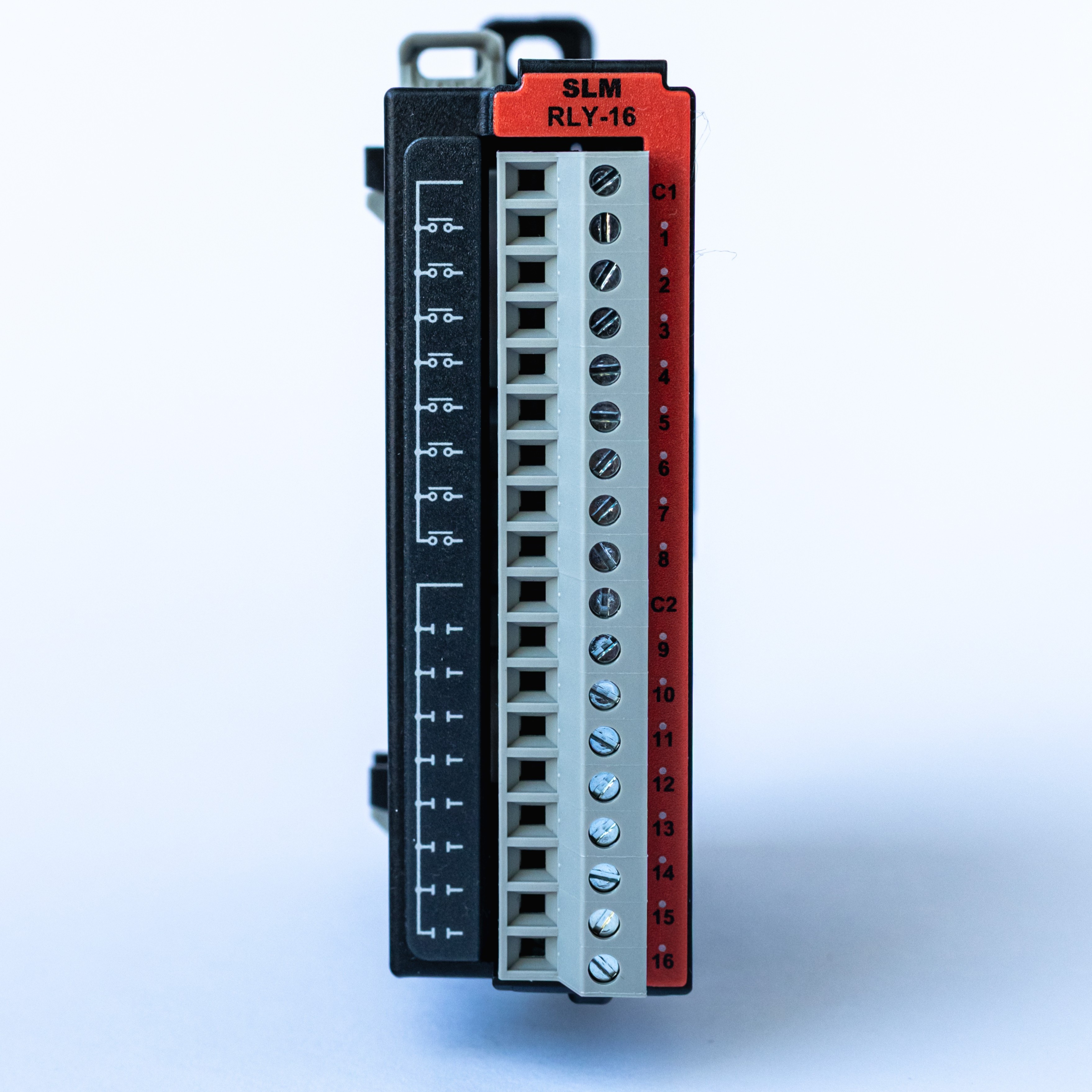

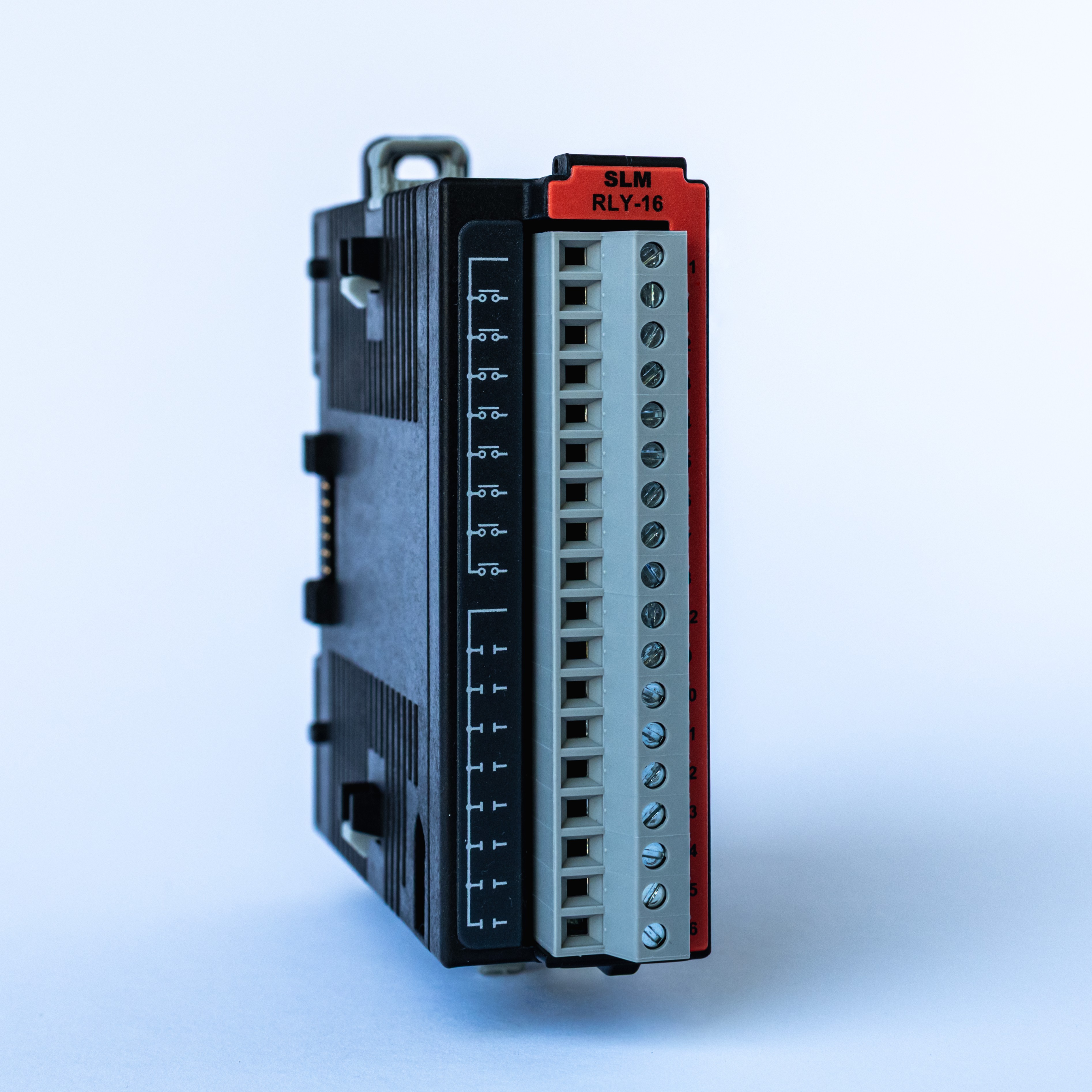

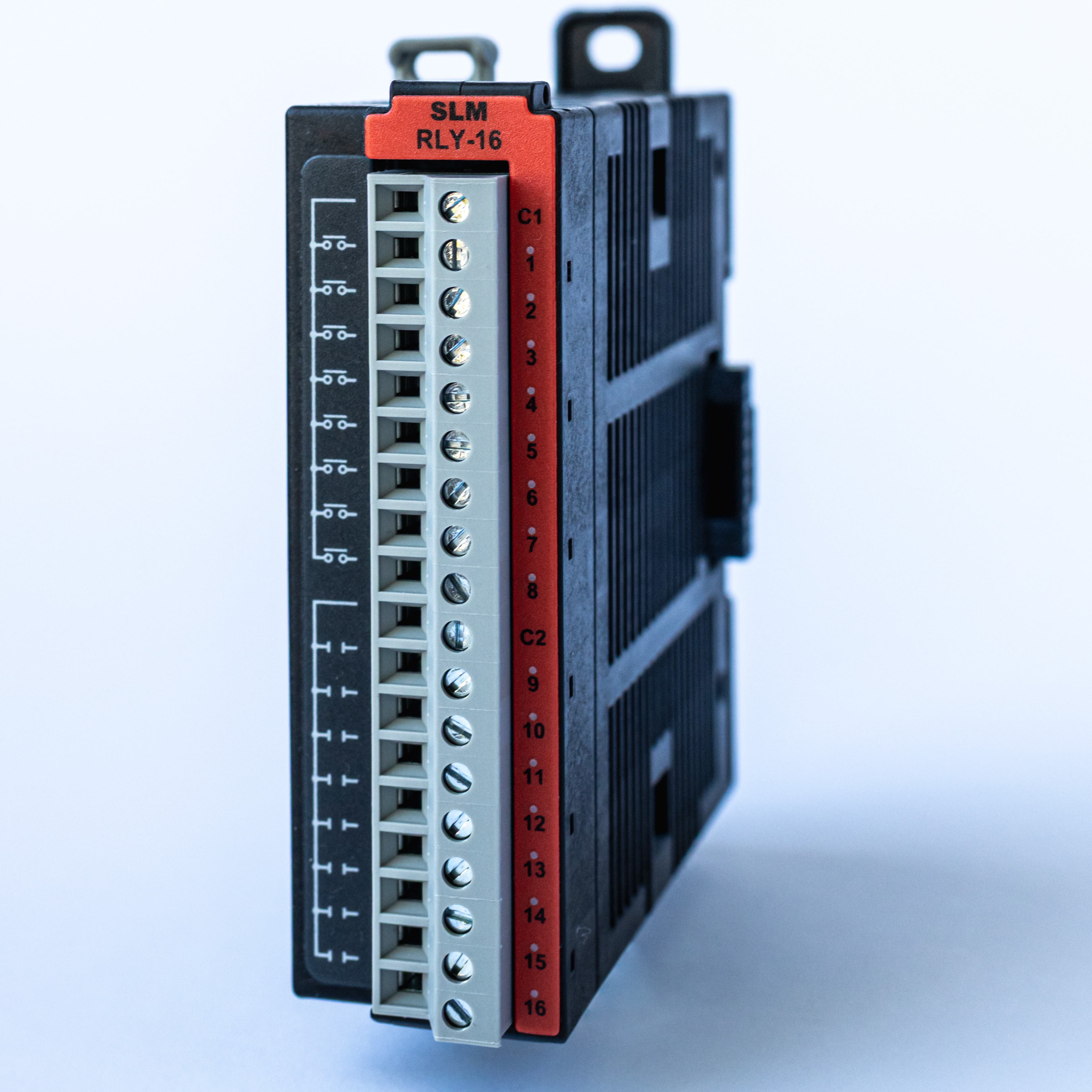

SLM-RLY-16
16-point, 6-24 VDC/6-120 VAC, (16) Form A (SPST) no-suppression, 2 isolated common(s), 8 point(s) per common, 2A/point, 8A/common
- Availability:
- In Stock
Net price: $105.00
Technical Details
- Family:
- Synergy-Logic Micro
- Online Documentation:
- https://docs.synergy-logic.com/
- Module Type:
- Relay Output
- Channels:
- 16 relay outputs (Form A)
- Signal Range:
- 6–240 VAC / 6–24 VDC
- Current:
- 2 A/point (max), 8 A/common
- Number of Commons:
- 2
- Output Range:
- 6–24 VDC
- Output Channels:
- 16 relay outputs (Form A)
- Agency Approvals:
- UL 61010-1 and UL61010-2-201 File E547748, Canada & USA CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 Safety)
- Operating Temperature:
- 0° to 60°C (32° to 140°F)
Resources
User Guide
SLM-RLY-16-DS_1stEdition_10202025_LR
Warranty
- Warranty Information:
- Two years from the date of manufacture or eighteen months from the date of installation by the original purchaser
